VCTA 3D Automated Optical Inspection (AOI) System

VCTA 3D Automated Optical Inspection (AOI) SystemThe VCTA 3D AOI System is a next-generation automated optical inspection solution designed for high-precision defect detection in SMT and THT production lines. Utilizing advanced 3D imaging technology, this system provides a detailed height profile of solder joints, component placement, and PCB surface features. With AI-driven inspection algorithms, it ensures high accuracy in identifying defects such as lifted leads, soldering issues, component misalignment, missing components, polarity errors, and more. The system is ideal for manufacturers requiring enhanced quality control, reduced false calls, and improved production efficiency.

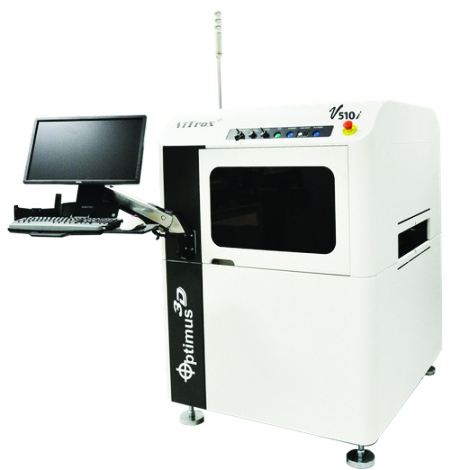

VCTA Inline Automated Optical Inspection (AOI) System

Product Features

  • 3D Inspection Technology – Captures precise height, shape, and volume of solder joints and components.
  • Multi-Angle High-Resolution Cameras – Delivers detailed image analysis with minimal blind spots.
  • AI & Deep Learning Algorithms – Enhances inspection accuracy and reduces false call rates.
  • Automated Height Measurement – Detects component lifting, tombstoning, and insufficient solder volume.
  • Advanced Lighting System – Multi-spectrum LED lighting ensures optimal image contrast for accurate defect detection.
  • Intelligent Defect Analysis – Smart defect categorization for efficient troubleshooting.
  • High-Speed Inspection – Optimized for rapid inline PCB inspection, improving production efficiency.

Product Applications

  • Post-SMT and post-reflow soldering inspection
  • Pre-reflow solder paste inspection (SPI) and THT component verification.
  • High-precision PCB manufacturing for automotive, aerospace, medical, and consumer electronics industries.
  • Inspection of fine-pitch components, BGAs, and microelectronics.
  • Smart factory automation and quality control in Industry 4.0 environments.

Technical Parameters

Feature Details
Printing Accuracy ±0.01mm
Max PCB Size 300mm x 400mm
Material High-Quality Steel
Weight 10kg
